Hardwire Activation

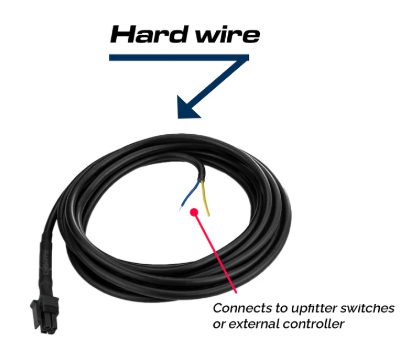

1. The Hardwire activation input wires must be programmed via the Z-Flash software to work

2. Blue Wire is HV trigger 1, Yellow Wire is HV Trigger 2, and the Connection to both the yellow and blue wires is HV Trigger 3

3. To program the HV Trigger wires, open up the Z-Flash Software

4. Connect your Z-Flash to your PC Via the included USB connection

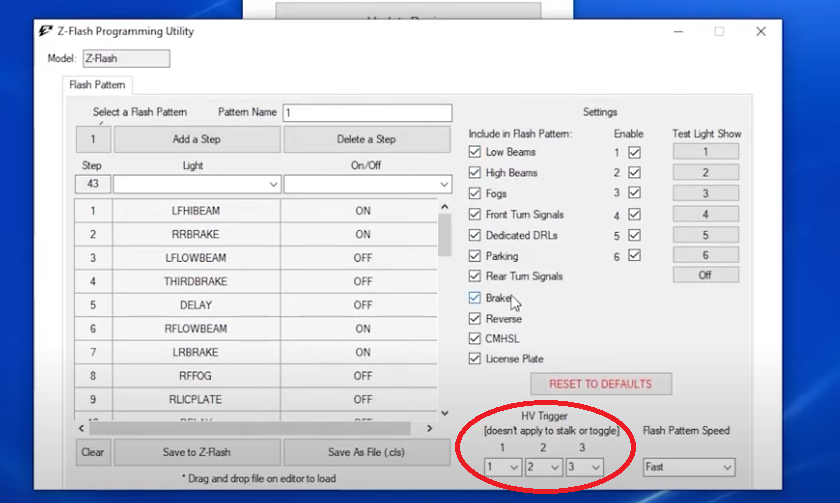

5. The HV trigger selection is located on the bottom right of the software (Circled in the image below)

6. You need to select a pattern number for the HV Trigger wires

7. Once selected, you can hit Save to Z-Flash

8. Whichever pattern is selected for the respective HV trigger wire will not activate once the wire receives 12V power.

*The Z-Flash Software can only be used on a WINDOWS computer. A tablet will not work. We suggest using a desktop or laptop
