Z-Flash BCM for Ford - Explorer Install Guide

This install guide is for the 2020-2024 Ford Explorers and Broncos. It will also apply to the 2019-2024 Ford Edge


* Prior to installation, disconnect the vehicle’s battery



  1. Locate the BCM for your vehicle on the driver’s side. The BCM on the Ford Explorer will be located under the instrument panel, to the left of the steering column.

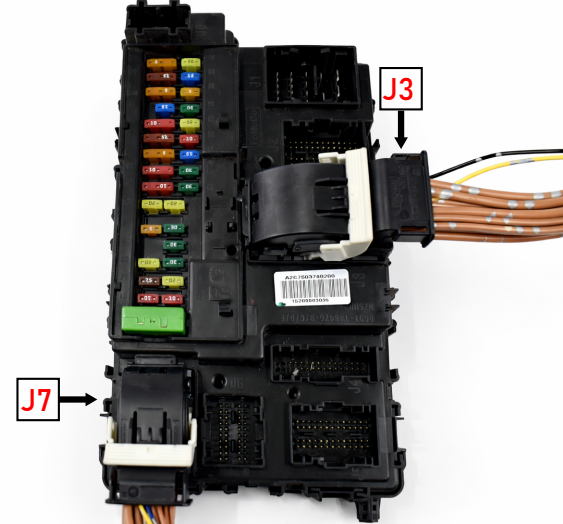

  2. Disconnect the J3 (Large Plug) on the BCM in the middle and the J7 (Smaller Plug) on the bottom left of the BCM (under fuses)
  3. Connect the male side of each T-Harness to the BCM and plug the factory plugs into the female side of the Z-Flash harness
  4. Connect the Large 22-Pin Molex Plug into the Z-Flash Module
  5. Once installed, you can reconnect the battery and activate the Z-Flash with the provided button or by pulling the High Beam Lever back for 5 seconds.

NOTES:

Please note that on the Ford Explorer we can only flash either Low Beams or High Beams. These cannot flash together. You will have to select which ones you prefer.


If you prefer Low Beams Flashing put DIP Switch 1 ON

If you prefer High Beams Flashing put DIP Switch 2 ON


The Z-Flash BCM for Ford has a total of 9 flash patterns. Patterns 8 and 9 are specifically designed for F-150 Lightnings so it can flash the entire front.
