Plug Not Fitting?

The Z-Flash BCM 2300 for Ford is a simple installation for the F-Series Trucks, Expeditions, and Explorers.

Something that could be commonly mistaken is that the harness that comes with the Z-Flash BCM 2300 is wrong.

Our harness for the BCM 2300 will plug in upside down. To be more specific, the wires will be facing up.

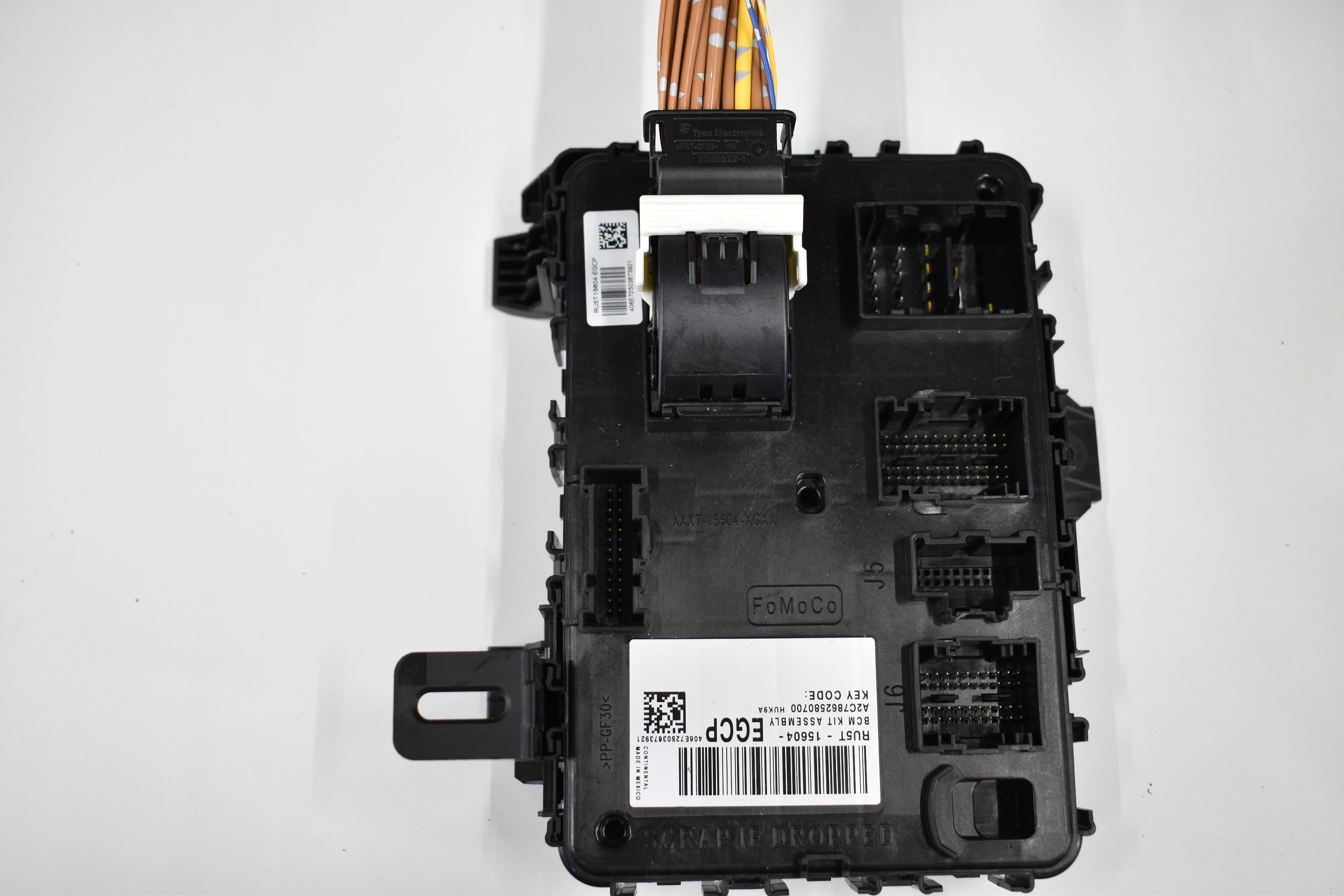

Here is an image below:

Our plugs will only fit in one way. It's normal for the white lever to be resistant when trying to pull it back.


When installing the Z-Flash BCM 2300 please make sure the vehicle's battery is disconnected. Also make sure the required ground wire with the metal ring around it gets grounded.
