DIP SWITCH SETTINGS

The Z-Flash LCM 2500 for GM features 6 different DIP Switch Settings and there is one specifically you must set depending on the vehicle you have.

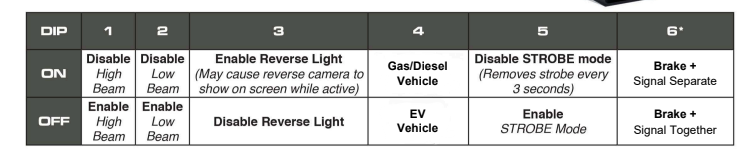

Here is an overview of what each DIP SWITCH Setting does on the LCM 2500:

DIP Switch #4 needs to be ON if your vehicle is Gas or Diesel.

EV Vehicles must be OFF.

If you have it on the opposite setting the Z-Flash will activate for only a couple of seconds and then shut off. It's important to verify #4.

Please also note that the DIP Switches are LIVE so make sure it's plugged into the truck while it's on in order for changes to go into effect.
